Sale!

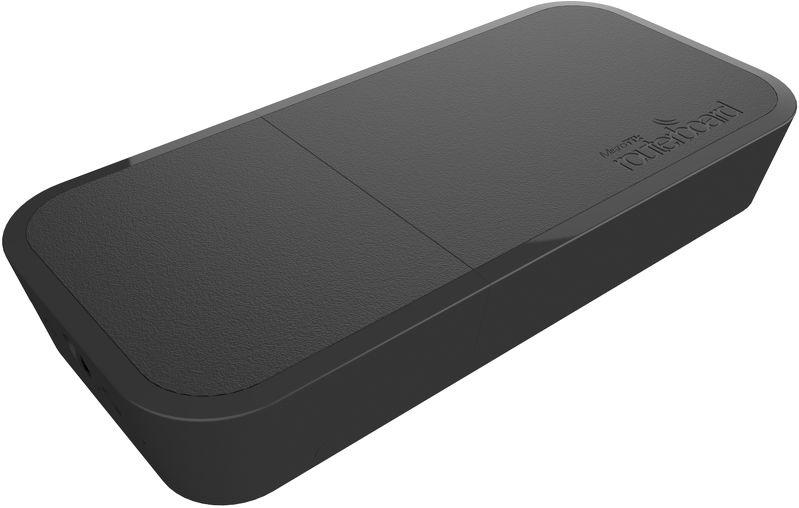

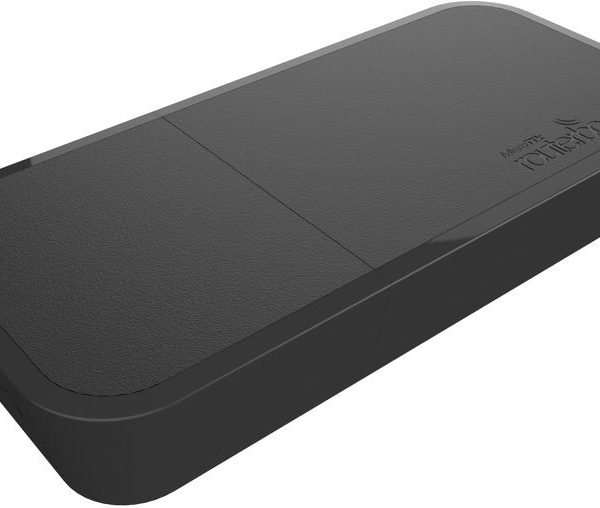

Mikrotik wAP ac / RBwAPG-5HacT2HnD

3,748฿ 2,999฿ ราคายังไม่รวมภาษี

สีดำ

หมวดหมู่: , ป้ายกำกับ:

รายละเอียด

wAP ac / RBwAPG-5HacT2HnD

 Datasheet

 Product specifications

Details
Product code RBwAPG-5HacT2HnD-BE
10/100/1000 Ethernet ports 1
802.11a Yes
802.11n Yes
Antenna gain 2
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 185 x 85 x 30 mm
License level 4
Max Power consumption 12W
Number of chains 3
Operating System RouterOS
PCB temperature monitor Yes
PoE in 802.3at
Secondary wireless chip model QCA9556
Secondary wireless standards 802.11b/g/n
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Supported input voltage 11 V – 57 V
Tested ambient temperature -40 to +50C
Voltage Monitor Yes
Wireless chip model QCA9880
Wireless standards 802.11a/n/ac

Specifications

Details
Product code RBwAPG-5HacT2HnD-BE
Architecture MIPSBE
CPU QCA9556
CPU core count 1
CPU nominal frequency 720 MHz
Dimensions 185 x 85 x 30 mm
License level 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -40 to +50C
Suggested price $89.00

Powering

Details
Max Power consumption 12W
PoE in 802.3af/at
PoE in input Voltage 11-57 V
Number of DC inputs 1 (PoE-IN)

Wireless

Details
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n
Antenna gain dBi for 2.4 GHz 2
Wireless 2.4 GHz chip model QCA9556
Wireless 5 GHz number of chains 3
Wireless 5 GHz standards 802.11a/n/ac
Antenna gain dBi for 5 GHz 2
Wireless 5 GHz chip model QCA9880

Ethernet

Details
10/100/1000 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 25 -95
11MBit/s 25 -90
6MBit/s 25 -95
54MBit/s 23 -80
MCS0 25 -95
MCS7 22 -74
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 25 -96
54MBit/s 25 -81
MCS0 25 -96
MCS7 24 -77
MCS9 23 -72
