Sale!

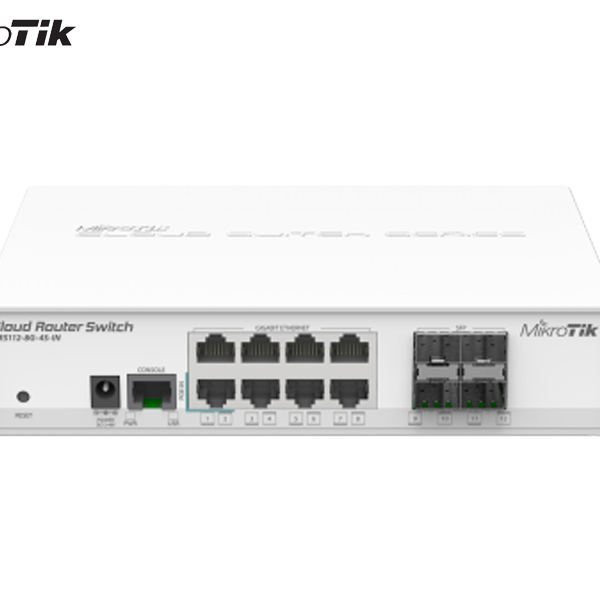

Mikrotik CRS112-8G-4S-IN

6,500฿ 5,200฿ ราคายังไม่รวมภาษี

หมวดหมู่: , ป้ายกำกับ:

รายละเอียด

CRS112-8G-4S-IN

Datasheet

Product specifications

Details
Product code CRS112-8G-4S-IN
10/100/1000 Ethernet ports 8
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Current Monitor Yes
Dimensions 200x143x44mm
License level 5
Max Power consumption 13.5W
Operating System RouterOS
PCB temperature monitor Yes
PoE in Passive PoE
Power Jack 1
SFP ports 4
Serial port RJ45
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30C to +55C
Voltage Monitor Yes

Included parts

Switching results

CRS112-8G-4S-IN
Mode Configuration 64 byte 512 byte 1518 byte
kpps Mbps kpps Mbps kpps Mbps
Switching Non blocking Layer 2 throughput 17,857.1 9,142.9 2,819.5 11,548.9 975.3 11,844.0
Switching Non blocking Layer 2 capacity 17,857.1 18,285.7 2,819.5 23,097.7 975.3 23,687.9
Switching Non blocking Layer 1 throughput 17,857.1 12,000.0 2,819.5 12,000.0 975.3 12,000.0
Switching Non blocking Layer 1 capacity 17,857.1 24,000.0 2,819.5 24,000.0 975.3 24,000.0

Ethernet test results

CRS112-8G-4S-IN QCA8511 1G all port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none 48.0 582.9 73.5 301.1 78.0 39.9
Bridging 25 bridge filter rules 26.1 317.0 28.6 117.1 29.6 15.2
Routing none 46.5 564.7 65.7 269.1 71.1 36.4
Routing 25 simple queues 14.5 176.1 16.1 65.9 16.8 8.6
Routing 25 ip filter rules 7.8 94.7 8.0 32.8 8.3 4.2

Specifications

Details
Product code CRS112-8G-4S-IN
Architecture MIPSBE
CPU QCA8511
CPU core count 1
CPU nominal frequency 400 MHz
Dimensions 200x143x44mm
License level 5
Operating System RouterOS
Size of RAM 128 MB
Storage size 16 MB
Storage type FLASH
Tested ambient temperature -30C to +55C
Suggested price $139.00

Powering

Details
Max Power consumption 13.5W
PoE in Passive PoE
PoE in input Voltage 10-57 V
Number of DC inputs 2 (DC jack, PoE-IN)
DC jack input Voltage 10-57 V

Ethernet

Details
10/100/1000 Ethernet ports 8

Fiber

Details
SFP ports 4

Peripherals

Details
Serial port RJ45

Other

Details
Current Monitor Yes
PCB temperature monitor Yes
Voltage Monitor Yes
